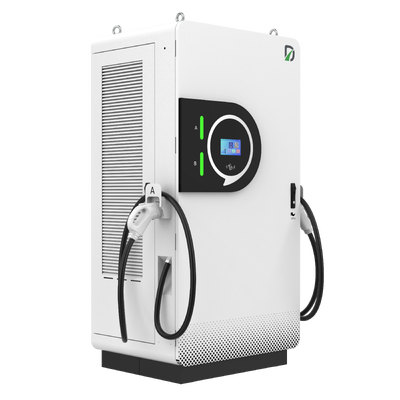

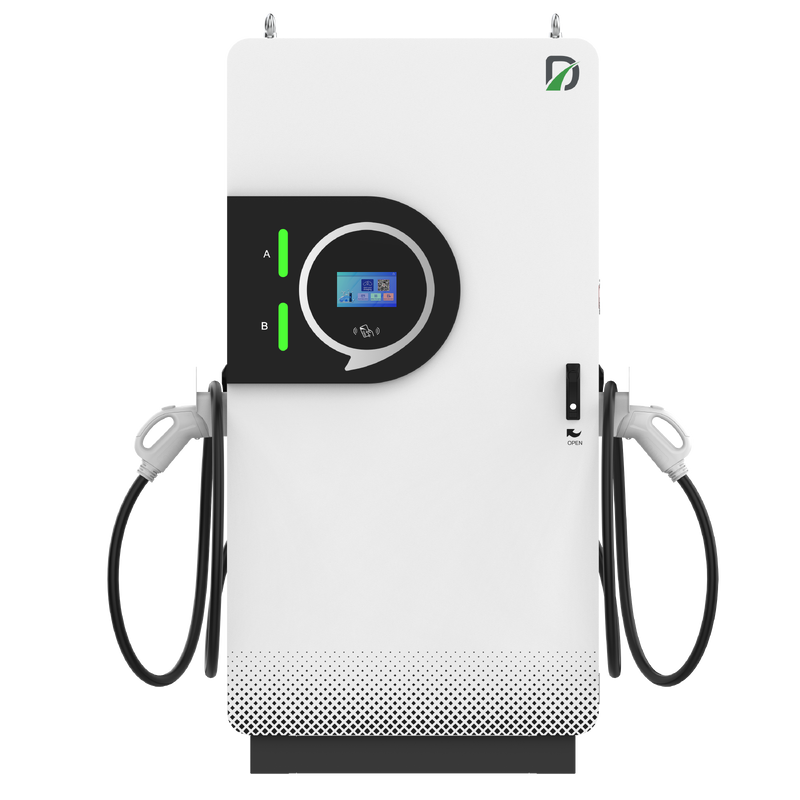

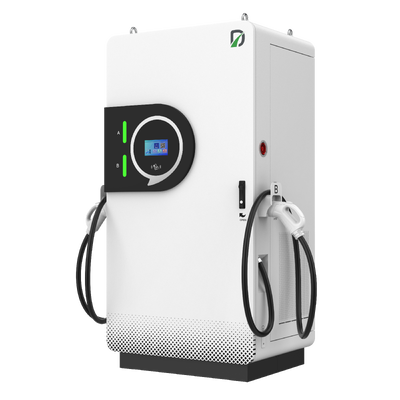

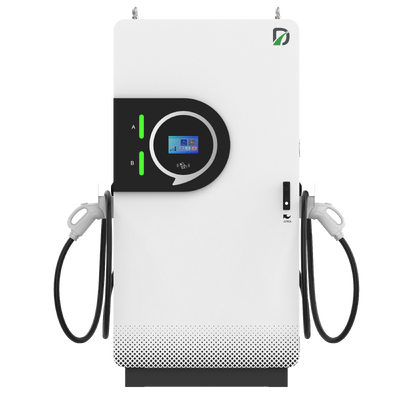

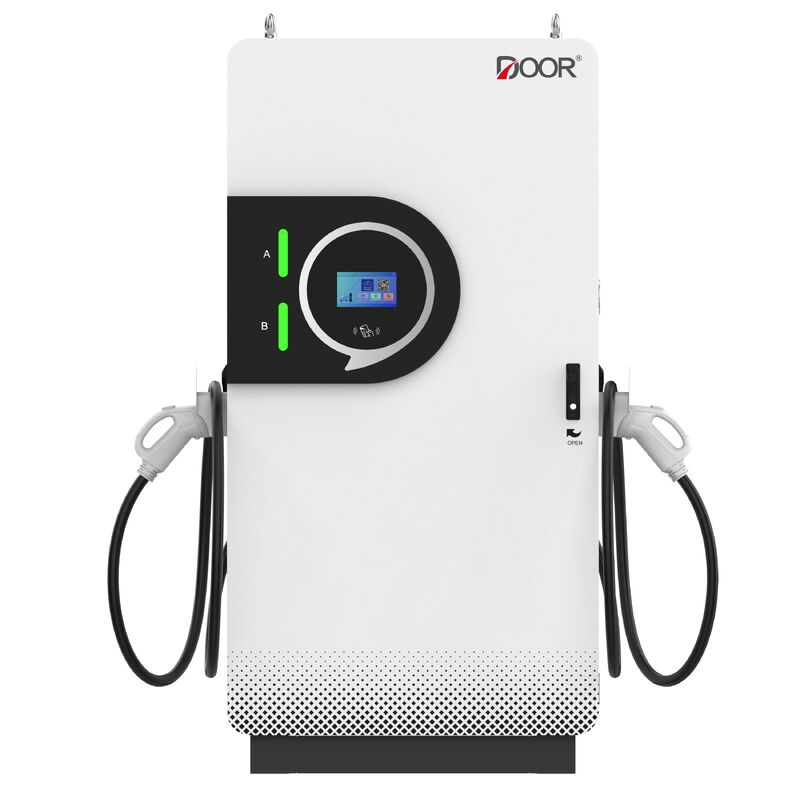

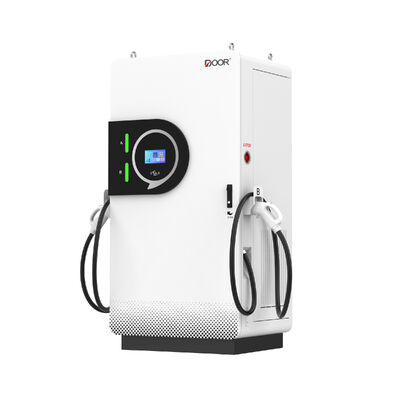

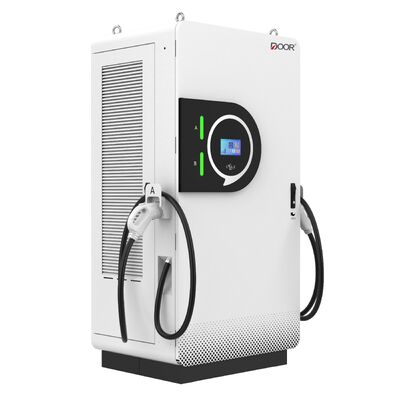

U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW

U series Ultra-High-Power DC EV Charger 180kW/240kW/320kW/400kW

브랜드 이름: DOOR
모델 번호: U 시리즈
MOQ: 1PC
가격: 협상 가능
지불 조건: L/C, T/T, 웨스턴 유니온
자세한 정보
원래 장소:
중국
인증:
CE/CB
전원공급장치:
3P+N+PE
정격전압:
AC 400V
빈도:
50/60HZ
출력 전압:
DC 200~1000V
최대 전류:
250A
정격 출력:
400kW
요금 연결기:
CCS2/CCS1/GBT/CHAdemo/테슬라
케이블 길이:
5m
울로 둘러싼 땅:
아연도금강판
LED 표시기:
녹색 / 파란색 / 빨간색
LCD 디스플레이:
7.0인치
시작 모드:
플러그 앤 충전/RFID 카드/APP
비상 정지:
포스 터미널:
선택 과목
와이파이:
Ethernet/3G/4G:
Opp:
OCPP 1.6(OCPP 2.0 옵션)
효율성:
맥스 95%
역률:
≥ 0.99
THD:
5% 이하
에너지 계량기:
MID 인증
RCD:
A 형
유입 방지:
IP55
충격 보호:
IK08
인증:
CE | CB((In Progress))
검정 표준:
EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014
보증:
2년
설치:
바닥 기판
냉각 방식:
팬 냉각
소음:
≤ 60dB
작업 온도:
-30°C~+50°C
작업 습도:
5%~95%
노크 고도:
<2000m
패키지 차원:
1200*847*1948mm(길이*너비*높이)
총중량:
700kg
외부 패키지:
목재 케이스
제품 설명

Meet The U Series Dc chargers


The U Series Dc chargers are specifically designed for public and retail applications, bringing industrial-grade resilience to high-traffic commercial spaces.

————————————————————————————————————————————————————————————————————————————————

Fully Sealed independent Air Duct


Double-layer louver design ensures complete protection for both air inlets and outlets.
Zero external dust intrusion during standby mode.
lsolates 99% of airborne particles, ensuring industrial-grade reliability.


Active Dust Removal System


Industry Exclusive (Patented): Competitors cannot replicate this performance.
Smart Automation: Automatically triggers vibration-based dust removal after every 10 charging sessions (frequency is fully customizable).
Foolproof Safety: During the cleaning cycle, the screen locks with the prompt "Dust Removal in Progress, Do Not Charge" and displays an E-stop status to prevent manual errors.Normal operation auto-resumes upon completion.


Ultra-Fast Simultaneous Charging


Wide power coverage scaling up to 400kw.
Perfectly adapted for heavy-duty electric trucks, construction machinery, and high-turnover retail charging hubs requiring massive power delivery.


Ultra-Quiet Design


Full-load operating noise s65dB across all power ranges.
Ideal for stations near residential zones, commercial centers, or night-time off-peak charging, eliminating the risk of environmental noise complaints.
